At the heart of every reliable electrical system lies a robust distribution network. Our EXORA.N Distribution Boards (DBs) portfolio is engineered to deliver safe, efficient, and scalable power distribution across residential, commercial, and industrial applications.
Laurits Knudsen’s EXORA.N Distribution Board assortment is wide enough to take care of each and every customer requirement with its standard and customized offering.

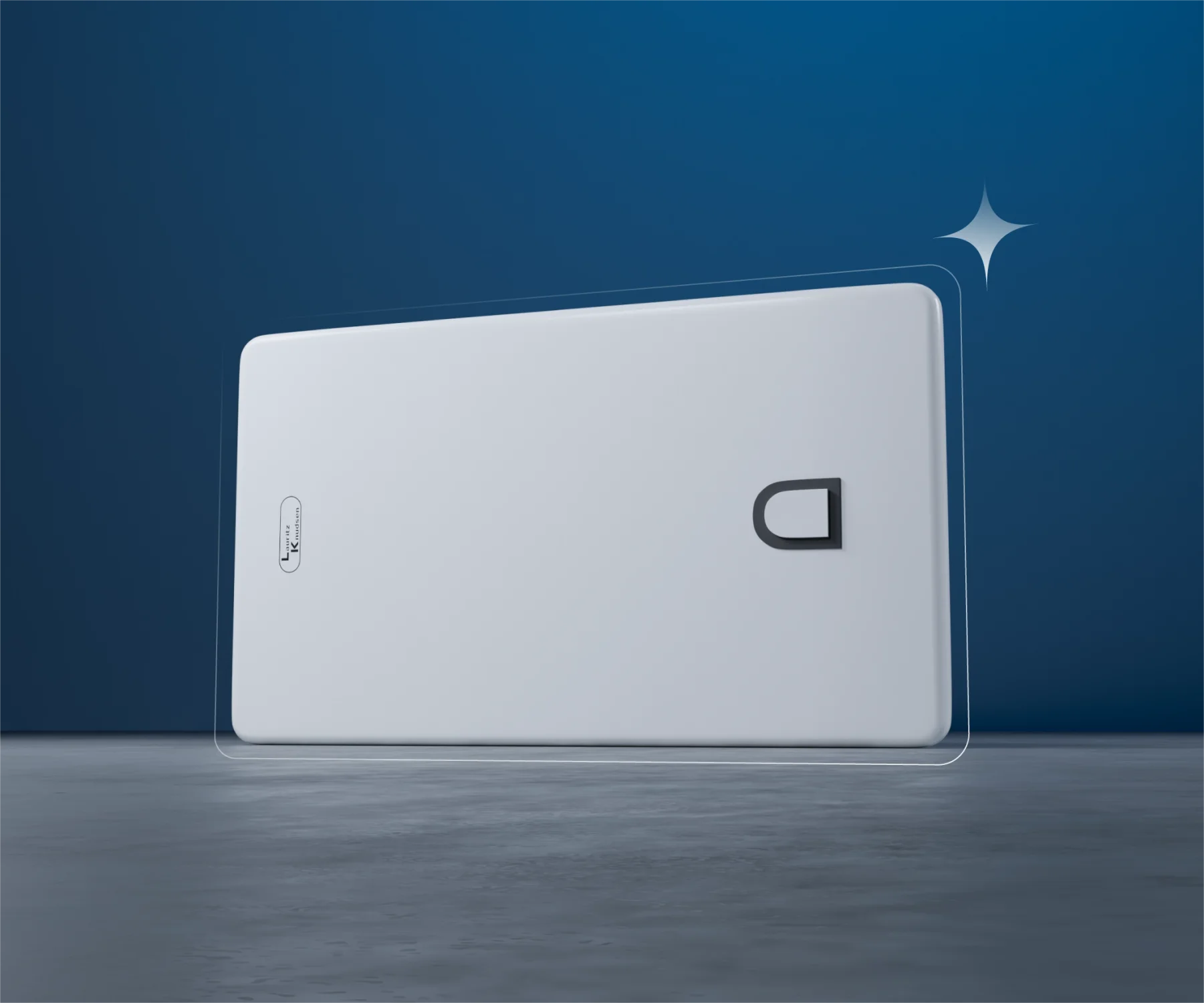

EXORA.N Distribution Boards are a perfect blend of superior aesthetics, contemporary feel and subtle presence that gel harmoniously with your décor
From compact residential DBs to high-capacity industrial panels, our solutions cover every need.
Smart DBs for real-time energy monitoring, status check, and control.
Designed and tested to meet global standards (IEC, IK, IP), ensuring maximum protection for people and assets.
Flexible configurations, aesthetic finishes, and modular options to suit diverse environments.
Energy-efficient components and recyclable materials aligned with green building norms.
Why Exora.N DB:
Application We Serve
Range of DBs
Technical Specifications:
Rated operational voltage (Ue)
240/415 Vac
Rated insulation voltage (Ui)
690 V for main busbar 500 V for i/c and o/g circuits
Rated impulse withstand voltage (Uimp)
6kV for main busbars
Rated current of the assembly (InA)
100A/ 63A PSR DB
Rated frequency (fn)
50/60 Hz
Rated short-circuit withstand strength (Icw)
Not exceeding 10 kA r.m.s
Degree of protection
IP30(SD)/IP43(DD)/IP54(DD)
Mechanical impact protection
IK08 (SD) / IK09 (DD)
Pollution Degree
3
Mounting
Surface / Flush
Color Shade
RAL 9003
Standard
IS/IEC 61439-3
