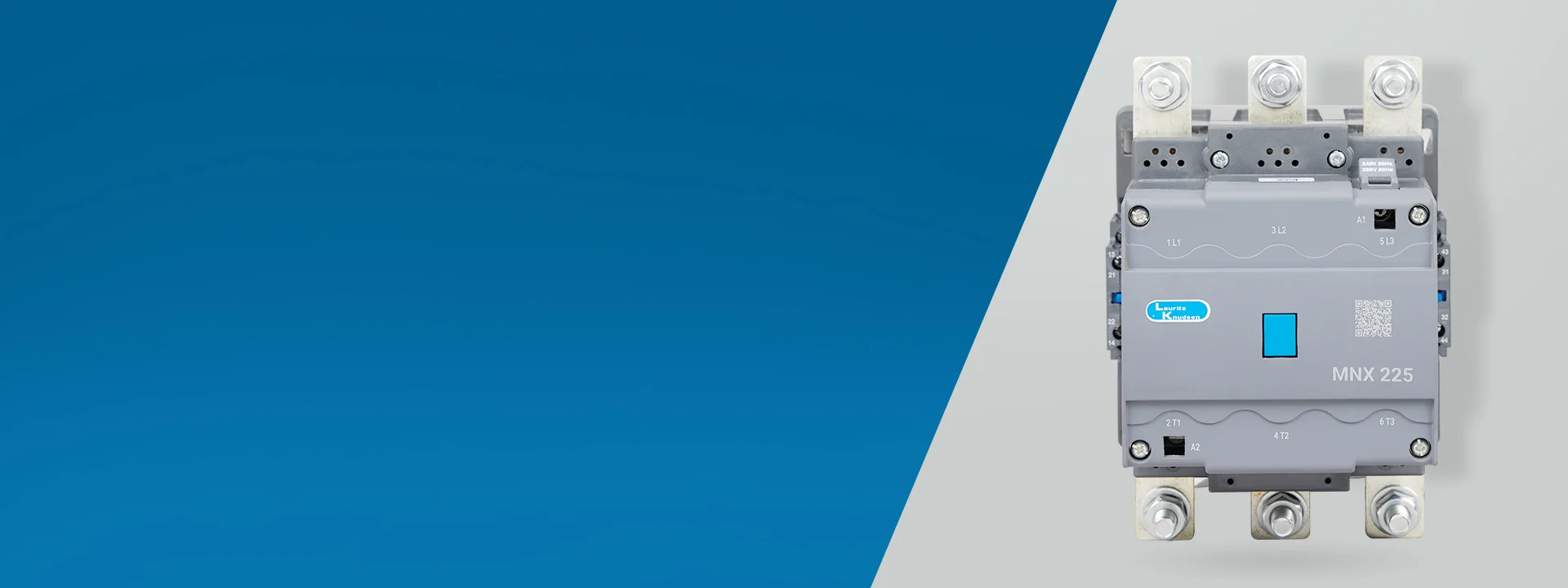

Efficient MNX Motor Control Contactors

Overview

MNX power contactors are primarily utilised in motor feeder and control system applications. With a range spanning from 9A to 650A (AC-3), they deliver dependable performance under various conditions, including high ambient temperatures and humidity. Additionally, accessories and spare parts are available for the entire range.

Benefits

  • High reliability ensures consistent performance and minimal downtime in demanding applications.
  • Easy access terminals from 50A and above simplify installation and maintenance, enhancing operational efficiency.
  • Suitable for DC-1, DC-3, and DC-5 applications, offering versatile usage across various direct current systems.
  • Accessories and spares are available for the entire range, facilitating customization and long-term maintenance.

alt Text

Features

  • Compliance with IS/IEC 60947-4-1 Standards - The MNX power contactors adhere to the IS/IEC 60947-4-1 and IEC 60947-4-1 standards, ensuring high safety, reliability, and performance in electrical motor feeder and control system applications.
  • Click-Fit Type Construction Up to 40A - For ratings up to 40A, the MNX power contactors feature a convenient click-fit type construction. This design simplifies installation and maintenance, reducing downtime and enhancing operational efficiency.
  • Coil-On-Top Design for 95A and Above - In models rated at 95A and above, the MNX power contactors incorporate a coil-on-top design. This layout improves heat dissipation and accessibility, ensuring more reliable performance under heavy-duty conditions.
  • Built-In 1 NO / 1 NC Auxiliary Contacts from 9-22A - MNX power contactors ranging from 9A to 22A come with integrated 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contact. This feature enhances control capabilities and allows for additional monitoring and signaling options without the need for extra components.

alt Text
